CARTRIDGE HEATERS

* Cartridge Heater is manufactured in SS, Brass pipes with high purity MGO (Magnesium oxide powder ),high quality in chrome wire.

* Cartridge heater is inserted into close fit hole of dies mould or plates.

* Cartridge Heater are manufactured in any diameter and length.

* MGO powder insulation assures high Electric strength and fast heat transfer and low oxidation of the resistance wire.

* It is used to heat rubber molding dies, hot plates, plastic injection moulds, sealing jaws of packaging & Pharmaceutical machines.

* Cartridge heater with built in thermocouple temperature sensors for runner less mould are available.

Application

FOR DIE HEATING OF PLASTIC, RUBBER & PACKING MACHINES IN SS, BRASS TUHES.

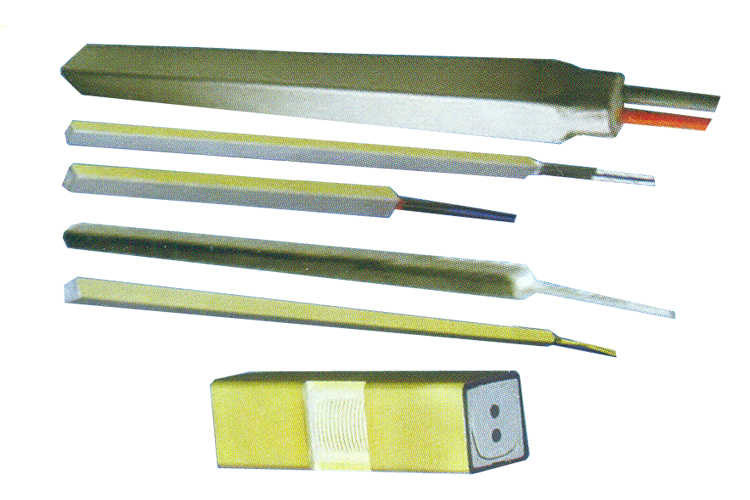

• Square Shape High Density Cartridge Heaters
Square Shape High Density Cartridge Heaters

Square Shape High Density Cartridge Heaters are specially developed for those application where a drilled hole is not practical.Heating coil wound around a ceramic core and isolated from SS/Incoly sheath by highly compressed layer of magnesium oxide powder. These heaters are ideal for milled slots in long platens where drilling a long hole is not possible.These heaters gives more surface contact per running inch than round cartridge heaters or D shape heaters giving longer life.

Std. Size: 1/2" * 1/2 ", 14*14 MM

Application:

Bag Sealing, Heating of Long Platens, Cutting Jawa, Heating of Shell Moulds in foundries.

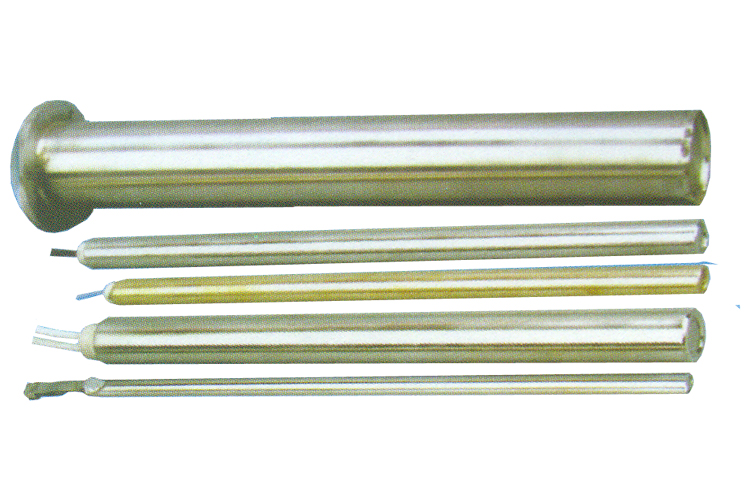

• Low/Medium Watt Dencity Cartridge Heaters
Low/Medium Watt Dencity Cartridge Heaters

Low/Medium Watt Dencity Cartridge Heaters are manufactured in SS/brass tube. Resistance wire helical coil evenly stretched and strung through a steatite insulator ,MGO powder filled in remaining space inside the tube and insulator to increases thermal conductivity and life.

Application:

Heating of Dies, Moulds, platens, Die heads, Packaging Machines, Sealing and Cutting Jaws.

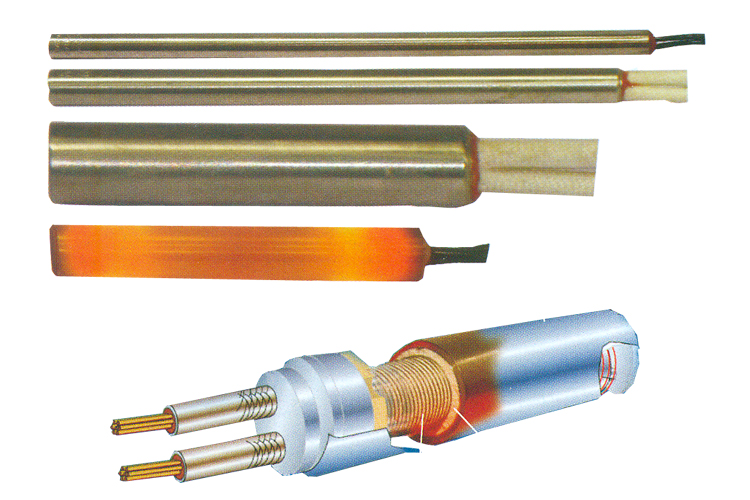

• High Density Cartridge Heaters
High Density Cartridge Heaters

High Density Cartridge Heaters are manufactured by special manufacturing technique. Heating coil wound around a ceramic core and isolated from SS/Incoly sheath by highly compressed layer of magnesium oxide powder . Because of exclusive manufacturing technique these heaters gives longer life copmare to other cartridge heaters and can be operated at higher temperature . Also it is possible to give more wattage in the small sizes.

High Density Cartridge heaters can be supplied with built in Thermocouple Sencor and Distributed Watt Density Cartridge Heaters.

Std.Dia-6,8,9.5,10,12,12,7,14,15,16,19,20,22,25,28,30MM.

Application

Heating of Dies, Moulds, Platens, Die heads, Packaging Machines, Sealing and Cutting jows.
