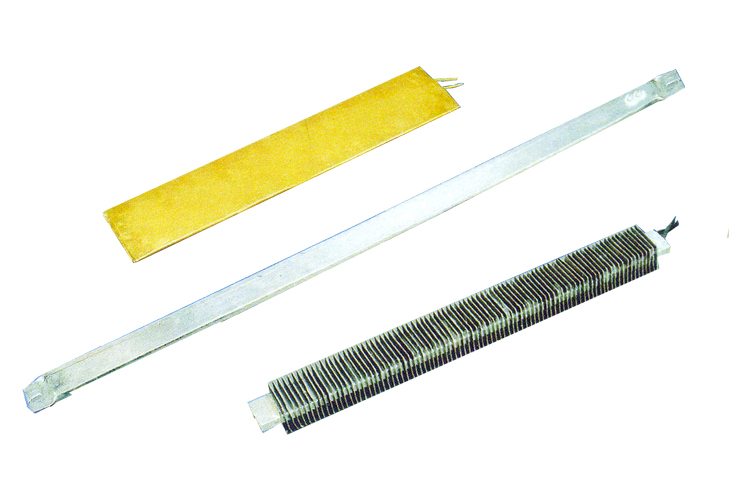

MICA STRIP / PLATE HEATER Nichrome ribbon wound on mica former & insulated with mica sheet. which is then sheathed in MS Plated or SS sheet.
CERAMIC/REFRACTORY PLATE/STRIP HEATER Heating coil supported in Fluted Refractory insulaters & sheathed in SS/MS Plated sheets.
FINNED STRIP HEATERS Basically Finns of size 65mm*35mm are fitted tightly on the Heavy Duty Strip Heaters for fast transfer of heat to flowing air.
APPLICATIONS :
Best suitable for uniform heat transfer to flat surface. Rubber moulding M/c Hot Plates
TYPE |
LENGTH |
WIDTH |
THICK |
FIXING HOLE SCEN TO CEN |
WATTAGE AT 230 V |
STRIP HEATERS STANDARD (REFRACTORY INSULATED) |
|||||
SH-15 |
380 MM |
38 MM |
9.5 MM |
355 MM |
600 W |
SH-18 |
457 MM |
38 MM |
9.5 MM |
432 MM |
750 W |
SH-21 |
533 MM |
38 MM |
9.5 MM |
508 MM |
850 W |
SH-24 |
610 MM |
38 MM |
9.5 MM |
585 MM |
1000 W |
SH-30 |
762 MM |
38 MM |
9.5 MM |
735 MM |
1500 W |
SH-36 |
915 MM |
38 MM |
9.5 MM |
890 MM |
2000 W |
STRIP HEATERS FOR PANEL BOARD |
|||||
SH-09PB |
228 MM |
38 MM |
9.5 MM |
203 MM |
60W / 40W |
SH-09PB |
229 MM |
38 MM |
9.5 MM |
203 MM |
100 W |
SH-12PB |
305 MM |
38 MM |
9.5 MM |
280 MM |
100W / 60W |
SH-12PB |
305 MM |
38 MM |
9.5 MM |
280 MM |
250 W |
Heaters can be manufactured as per coustomer's requirements. |
|||||
